GSW (Glaze Stone Ware) Pipes and Fittings are high-performance ceramic drainage solutions designed for underground sewer and wastewater systems. These pipes feature a smooth glazed interior that ensures excellent flow efficiency and prevents buildup, while their hard, vitrified exterior provides outstanding resistance to corrosion, chemicals and abrasion. GSW pipes are eco-friendly, non-toxic and offer a very long service life, making them ideal for permanent drainage infrastructure.

Used in Projects

Residential layouts.
Apartments.
Commercial buildings.
Municipal sewer networks.
Industrial estates.

Applications

Sewage lines
Waste water disposal
Underground drainage

Product Catalog

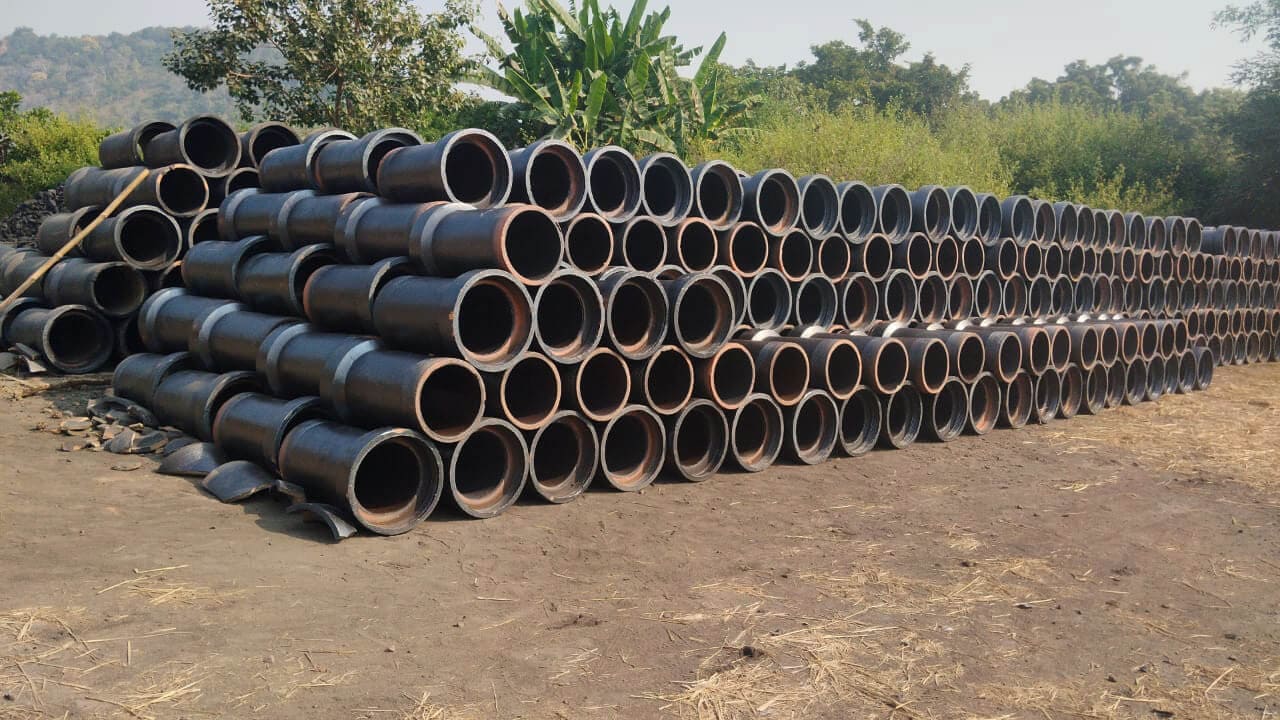

Industrial-Grade GSW Vitrified Sewer Pipe

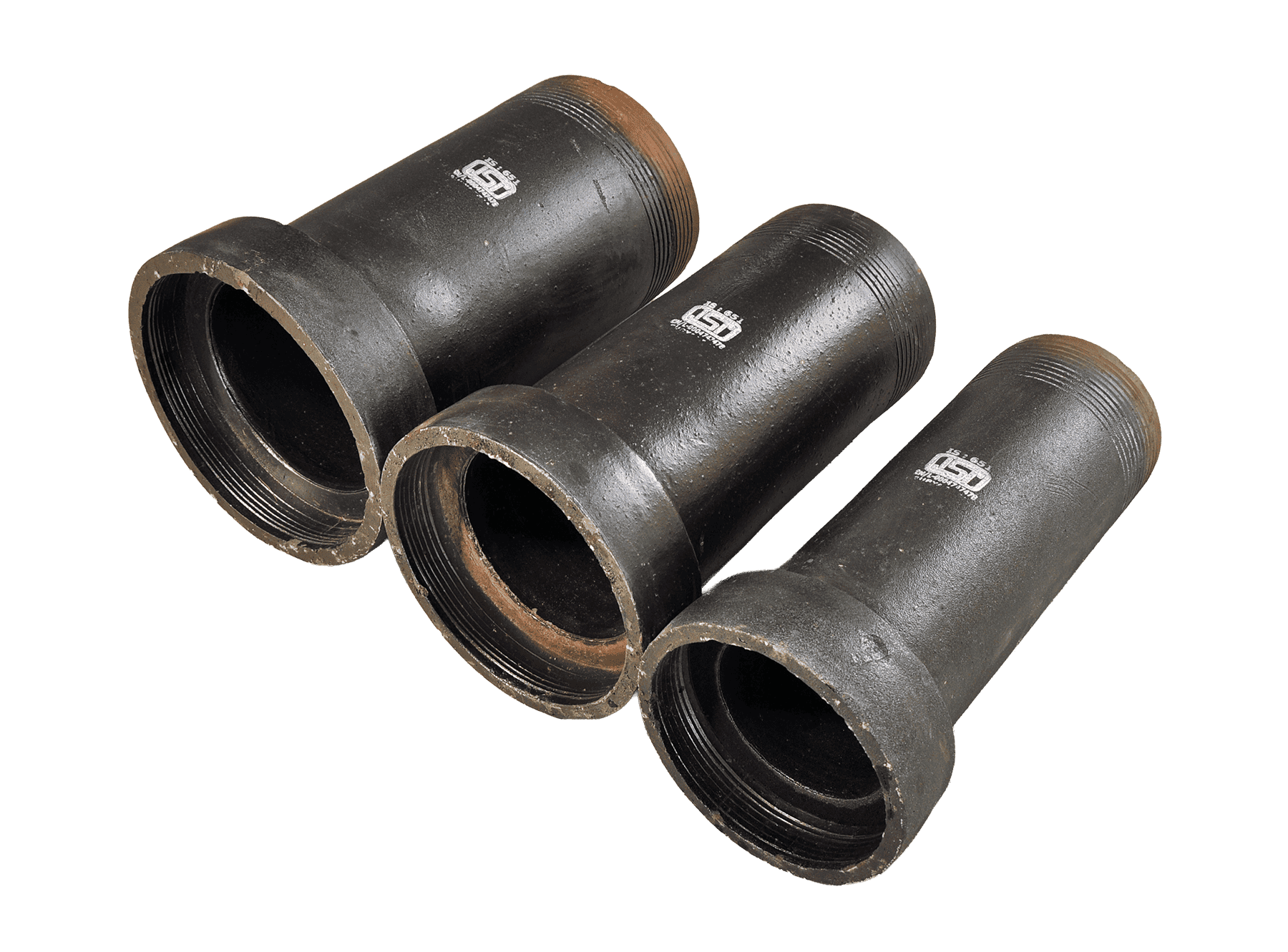

The GSW (Glazed Stoneware) Pipes shown are high-density vitrified clay conduits, salt-glazed at temperatures exceeding 1100°C to create a chemically inert, non-porous interior. Technically, they feature a robust socket and spigot (S&S) joint complying with IS 651:2007 standards , ensuring high crushing strength for deep-earth burial without deformation. These pipes are primarily utilized in municipal sewerage networks, industrial effluent disposal, and household drainage systems due to their 100-year service life and immunity to corrosion . They are available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, 300mm, and 450mm.

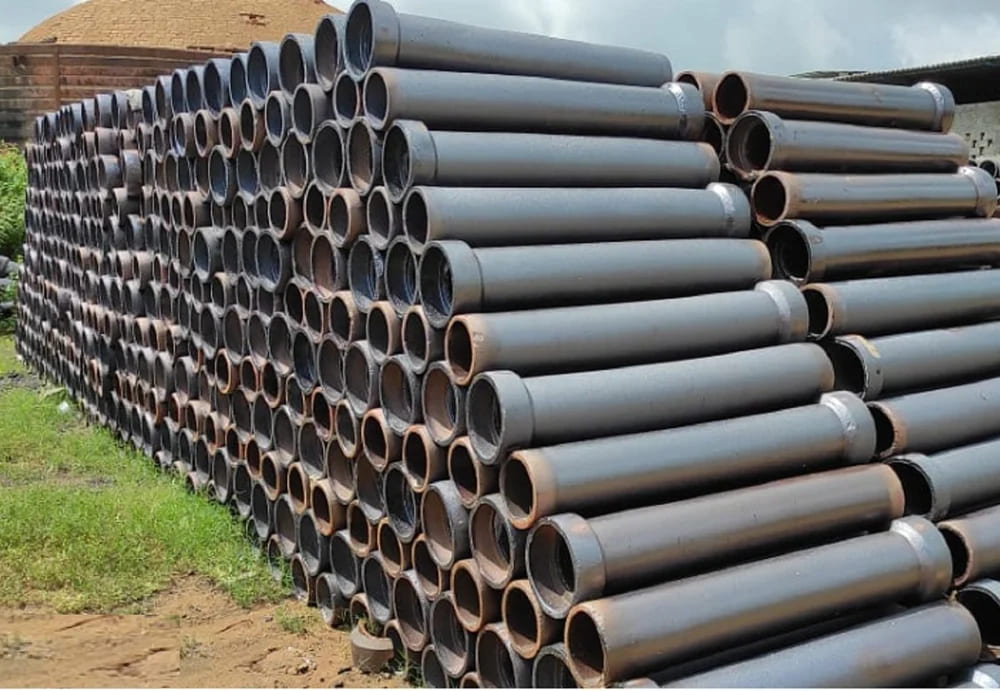

Heavy-Duty Vitrified Clay Sewer Pipe

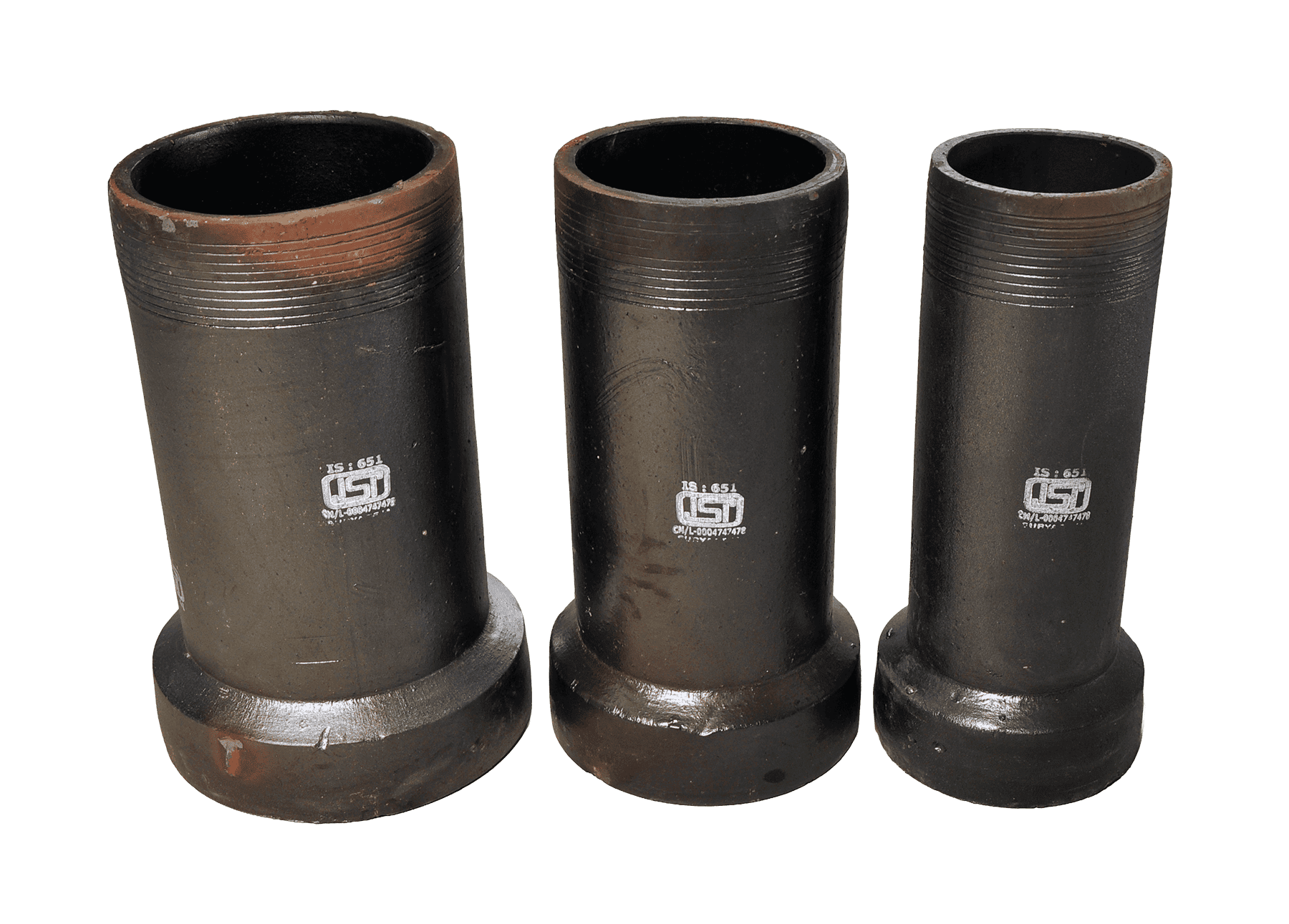

This is a Salt-Glazed Stoneware Pipe, a heavy-duty ceramic conduit manufactured from vitrified clay and fired at 1100°C to achieve a non-porous, acid-resistant finish. Technically, it features a socket and spigot joint (S&S) with grooved ends for secure cement or rubber sealing and complies with IS 651 standards for high crushing strength. These pipes are primarily used in underground sewerage, municipal drainage, and industrial chemical waste disposal due to their 100-year service life and immunity to corrosion. It is available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

Salt-Glazed Stoneware Pipe

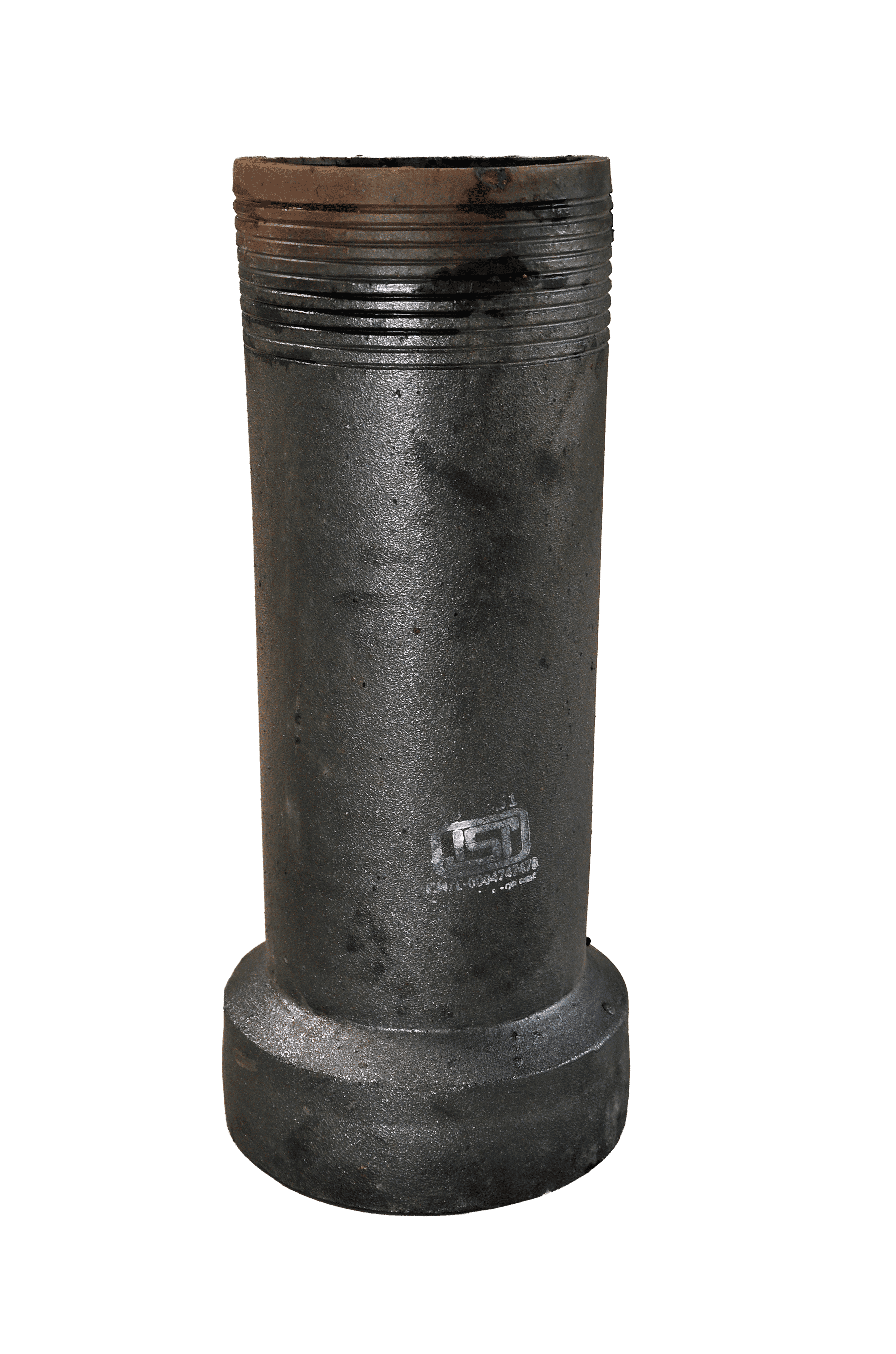

This is a Salt-Glazed Stoneware Pipe, a heavy-duty ceramic conduit manufactured from vitrified clay and fired at 1100°C to achieve a non-porous, acid-resistant finish. Technically, it features a socket and spigot joint (S&S) with grooved ends for secure cement or rubber sealing and complies with IS 651 standards for high crushing strength. These pipes are primarily used in underground sewerage, municipal drainage, and industrial chemical waste disposal due to their 100-year service life and immunity to corrosion . It is available in standard internal diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

Industrial-Grade GSW Vitrified Sewer Pipe

This GSW (Glazed Stoneware) Pipe is a high-density vitrified clay conduit, salt-glazed at 1100°C to create a chemical-resistant and non-porous interior. Technically, it features a socket and spigot joint complying with IS 651:2007 standards , offering superior crushing strength for deep-earth burial without deformation. These pipes are primarily used in municipal sewerage networks, industrial effluent disposal, and household drainage due to their 100-year service life and immunity to corrosion. It is available in standard diameters of 100mm, 150mm, 200mm, 230mm, and 300mm.

Technical Specifications

1. General Technical Specifications

Property	Specification / Value	Reference Standard
Water Absorption	Maximum 6.0% by weight	IS 651:2007
Acid Resistance	Mass loss shall not exceed 2.5% (1.0N H₂SO₄)	IS 651:2007
Hydraulic Test	0.15 MPa internal pressure for 5 mins (No sweating/leakage)	IS 651:2007
Crushing Strength	SP1 (16 kN/m), SP2 (20 kN/m), SP3 (24 kN/m)	IS 651:2007
Jointing Efficiency	Leak-proof up to 2.5m water head	IS 4127:1983
Alkali Resistance	High resistance to sewage chemicals	IS 4127:1983
Root Resistance	Vitrified surface prevents penetration	IS 4127:1983
Service Life	Expected 50 - 100 Years	IS 4127:1983

2. Dimensional Specifications

Nominal Size (mm)	Int. Dia (Tolerance)	Wall Thickness	Socket Depth	Crushing Strength (SP1)
100	100 ± 5 mm	12 mm	50 mm	16 kN/m
150	150 ± 6 mm	16 mm	55 mm	16 kN/m
230	230 ± 9 mm	21 mm	65 mm	20 kN/m
300	300 ± 12 mm	25 mm	70 mm	20 kN/m

Installation Note (IS 4127): Minimum earth cover of 90cm is mandatory for pipes under roads. Jointing requires tarred gasket followed by 1:1 cement-sand mortar.

3. Fittings: Bends & Junctions

Standard Compliance: IS 651:2007 for Drainage & Sewerage Systems

Bends (Plain & Door Types)

Nominal Size	Angle	Radius Type	Socket Depth	Weight (Approx)
100 mm	90° / 45°	Long Sweep	50 mm	4.5 kg
150 mm	90° / 45°	Standard	55 mm	7.2 kg
200 mm	90° / 45°	Standard	60 mm	12.5 kg
250 mm	90° / 45°	Standard	65 mm	19.0 kg

Junctions (Single & Double T/Y)

Main Dia	Branch Dia	Junction Angle	Configuration	Application
150 mm	100 mm	45° (Y)	Reducing	Branch Connections
150 mm	150 mm	90° (T)	Equal	Main Line Junction
200 mm	150 mm	45° (Y)	Reducing	Industrial Drainage
250 mm	250 mm	90° (T)	Equal	Municipal Sewerage

Note: Door fittings (with access lids) are recommended at sharp changes in direction to facilitate cleaning and maintenance.

4. Installation Guidelines

Jointing Compound

Tarred Gasket/Hemp soaked in 1:1 Cement-Sand Mortar slurry.

Trenching

Width = Pipe O.D. + 300mm. Minimum cover 0.9m under traffic areas.

Bedding

Sand bedding for stable soil; Lean concrete (1:5:10) for soft/clay soil.
